BAR05R

36.00
Κωδικός προϊόντος: BAR05R
Διαθεσιμότητα: Διαθέσιμο
Κωδικός προϊόντος: BAR05R Κατηγορία:

Περιγραφή

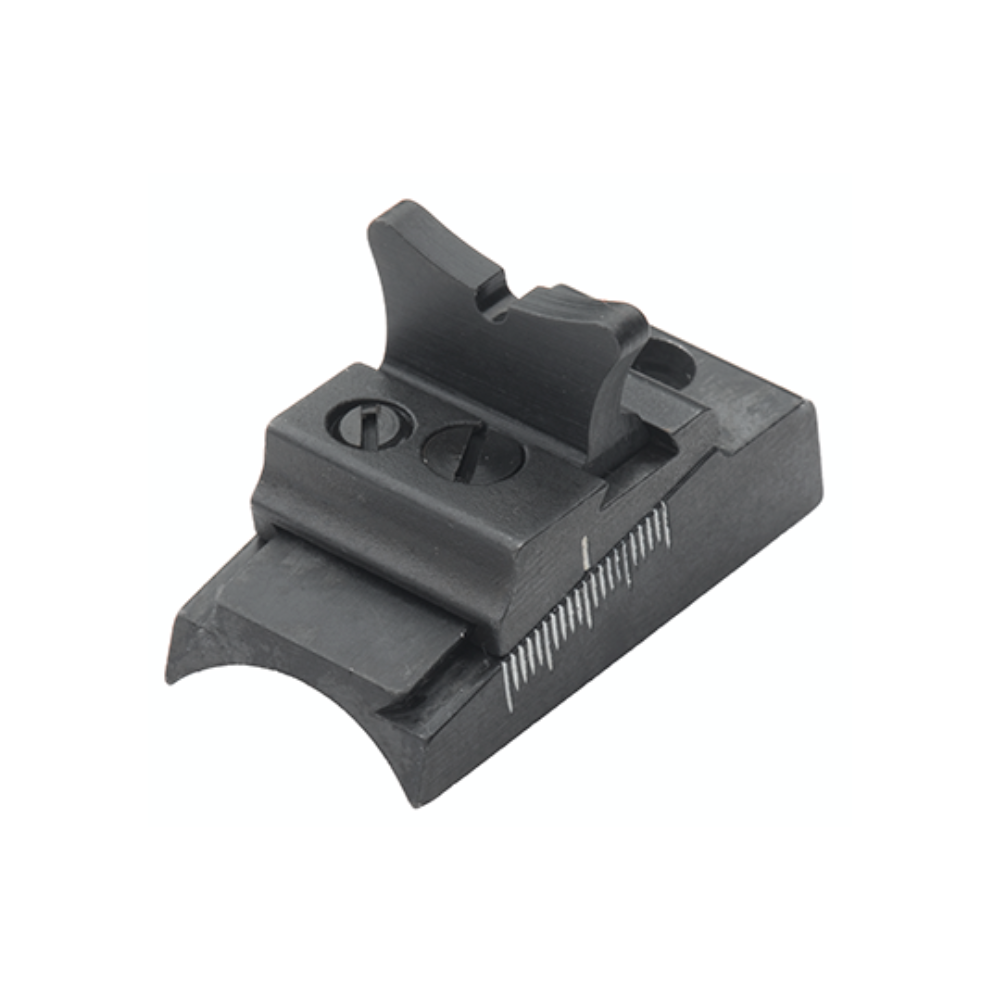

Rear sight with slide windage and elevation adjustment. Interchangeable blades in four different heights and one ghost ring sight.
BAR05R : standard type for rifle with radius (fixing by two screws , 3mm or 6-48”).
BAR05P : flat type (fixing by two screws 3mm on SB01).
SB01: adapter base for BAR05P to be welded on the barrel (for shot- gun).
The BAR05 interchangeable blades are available in the following styles:
FG5 (blade height 5 mm (3/16”) FG6 (blade height 6 mm (1/4”) FG7 (blade height 7 mm (9/32”) FD1 (sight aperture)
Standard for barrel: ø 19÷21 mm (.748÷.825). Fixing with two 3 MA or 6×48 screws (specify). Center to center distance: 14,3 mm (9/16”).
Adjustment in height:
With FG5/FG5F : 9,7 ÷ 12,4 mm (.384÷.490).
With FG6/FG6F: 10,8 ÷ 13,5 mm (.428÷.535).
With FG7/FG7F: 12 ÷ 14,6 mm (.470÷.575).
With FD1 : 10 ÷ 12,6 mm (.393÷.496).
