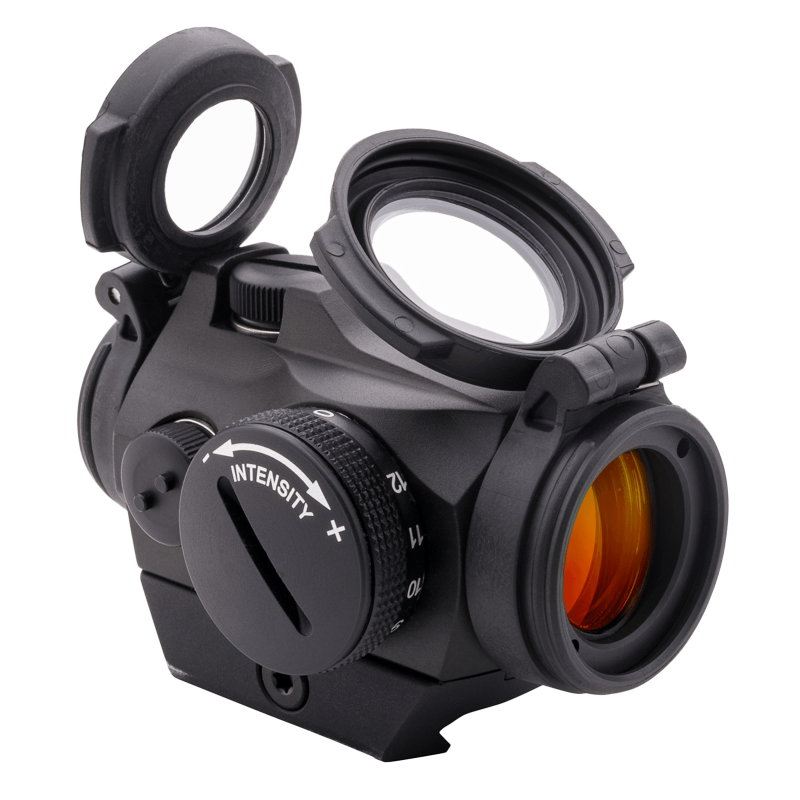

4 MOA – Red Dot Reflex Sight
- 4 MOA dot size
- 50,000 hours (over 5 years) of operation on one battery
- 12 intensity settings for use in daylight and low light conditions
- Lightweight – 94 g (3.3 oz) sight only and 130 g (4.6 oz) with mount
- Submersible to 5 meters (15 feet)
- Height of Optical Axis 20 mm (0.8 in) measured from top surface of mechanical interface
- Advanced optical lenses for enhanced light transmission and ultimate dot clarity
OVERVIEW

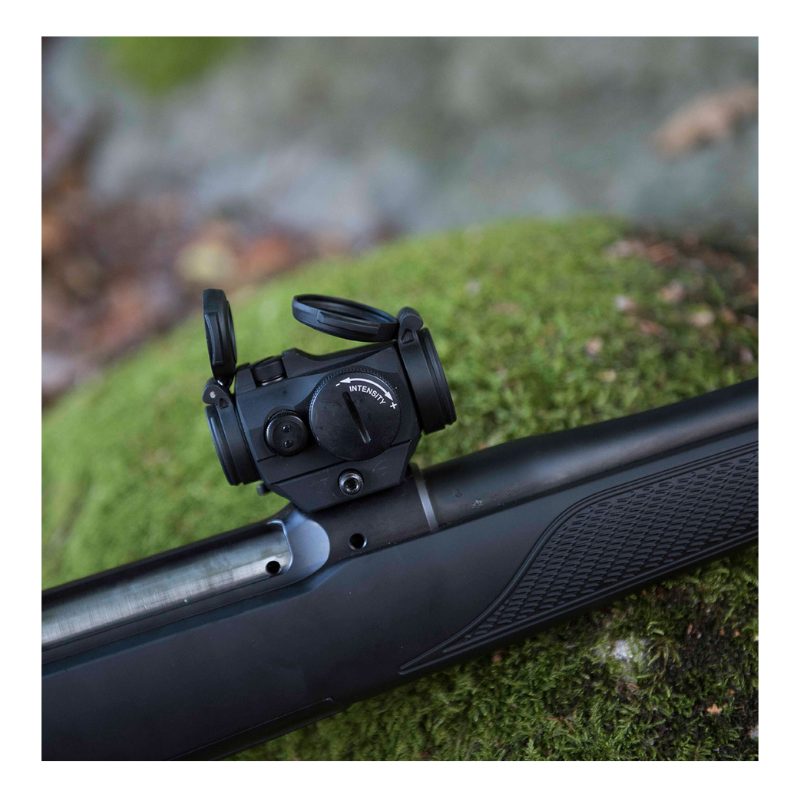

Being the top choice for speed and accuracy in a compact reflex optic, the Aimpoint® Micro H-2 is trusted by millions of hunters and sport shooters worldwide.
This second generation Aimpoint® Micro red dot sight has a redesigned and reinforced house body, as well as flip-up covers protecting the lenses. Thanks to superior optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved. Micro H-2 is available in three different MOA sizes; 2, 4 and 6 MOA. It offers 50,000 hours of operation on a single battery.
Micro H-2 combines simplicity, speed, ruggedness, accuracy and reliability.
TECHNICAL SPECIFICATION
- Size L x W x H 79 x 45 x 48 mm
- Weight 130 g
- Size L x W x H – Sight Only 68 x 41 x 37 mm
- Weight – Sight Only 94 g
- Material Housing and Tube High Strength Aluminum
- Surface Finish Housing Anodized, Semi-Matte
- Color Housing Black
- Lens Covers Flip-up Lens Covers, Transparent
- Material Lens Covers Thermoplastic Elastomer (TPE)
- Material Mounting Solution Aluminum
- Height of Optical Axis 20 mm / 0.8 in measured from top surface of mounting platform
- Adjustment 1 Click = 13 mm at 100 m / 0.5 in at 100 yds
OPTICAL SPECIFICATIONS
- Dot Size 4 MOA
- Magnification 1X – No Magnification
- Night Vision Device (NVD) Compatible No
- Transmission Average 60% in the range 420 – 700 nm
- Eye Relief Unlimited
- Diode LED (Light Emitting Diode) totally eye safe
- Dot Color Red
- Light Source Wavelength 650 nm red light
- Optical Coating Anti-reflex coating all surfaces and multilayer coating objective lens
- Clear Aperature 18 mm / 0.7 in
- Parallax Operationally parallax free – No centering required
POWER SOURCE SPECIFICATIONS
- Battery Life 50,000 h at daylight setting 8 (15,000 Lux, room temperature)
- Battery Type CR2032, 3V, Lithium
- Battery Quantity 1
- Battery Size CR2032

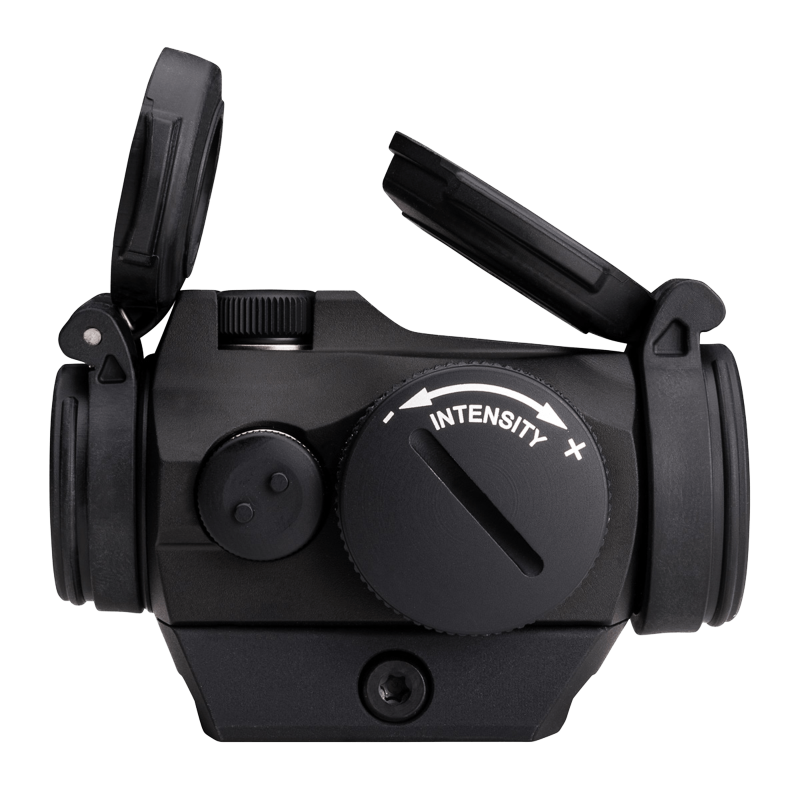

- Power Switch Rotary Switch
- Daylight (DL) Settings 12
MOUNTING SPECIFICATIONS
- Mounting Solution Micro™ Standard Mount for Weaver / Picatinny
- Mounting Platform Weaver /Picatinny Rail
- Torque – Mount to Sight 1.35 Nm / 12 in-lbs (Torx T10)
- Torque – Mount to Rail 2.0 Nm / 18 in-lbs (Torx T10)
ENVIRONMENTAL SPECIFICATIONS
- Submersible to 5 m / 15 ft
- Laser No Laser Emission
- Radioactive Material None
- Temperature Range Operation – 30°C to + 60°C / – 20°F to + 140°F
- Temperature Range Storage – 51°C to + 71°C / – 60°F to + 160°F
- Temperature Shock Operable after a temperature shock between – 30°C and + 60°C / – 22°F and + 140°F
- Humidity Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
- Shock Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
- Vibration Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
- Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.
